Outsider MDT: Accurate Water Metering Made Easier
Outsider MDT Overview

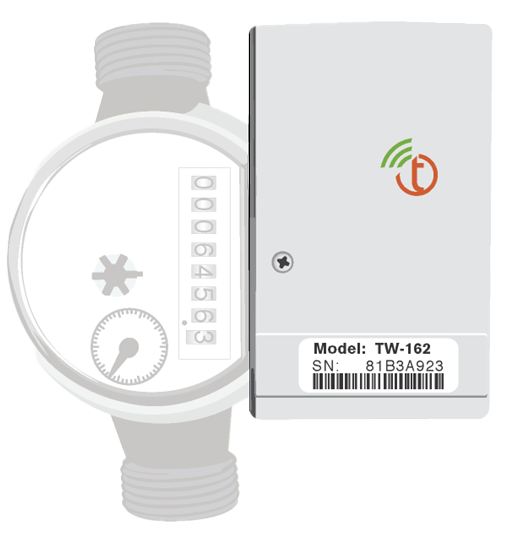

Outsider MDT is a metering data transceiver designed for indoor use with the NMT SingleMag™ and VersaMag™. It enables automated meter reading (AMR) through near real-time data transmission, allowing usage data to be wirelessly sent to the Data Concentrating Access Point (DCAP) or LoRaWAN Gateway for valuable insights into consumption patterns for property stakeholders.
This device supports both vertical and horizontal installations, making it adaptable to various plumbing configurations across residential and commercial properties. With its wire-free design, Outsider MDT simplifies installation, allowing utilities to efficiently monitor water consumption.
Equipped with an AMR radio, Outsider MDT eliminates manual meter readings and helps ensure accurate billing, providing timely insights for effective resource management.
Supports wireless ranges from 1 to over 10 miles, with extended coverage via repeaters (Standard and MAX) or additional gateways (LoRaWAN) for flexible deployment across diverse property layouts.
Outsider MDT enhances utility management by providing accurate readings and flexible installation for effective real-time monitoring of utility usage.
- Captures precise readings for accurate billing from positive displacement meters
- Combines direct meter reading with AMR radio technology for automated, accurate readings
- Simplifies installation with a single screw and no wiring to reduce labor costs
- Flexible orientation allows horizontal or vertical mounting for various placements
- Enables easy battery replacement, minimizing downtime
Whether you’re looking to upgrade existing meters or implement new solutions, Outsider MDT provides an efficient and reliable way to modernize your metering infrastructure.
Multifamily
Housing
Outsider MDT enables seamless meter reading in multifamily housing, combining direct meter reading with an AMR radio for simple installation and reliable service.
Commercial
Properties
In commercial properties, Outsider MDT supports efficient utility management by delivering accurate meter readings, helping businesses optimize costs and streamline operations.
Manufactured
Homes
For manufactured home communities, Outsider MDT simplifies the installation process for water meters, ensuring accurate billing and reducing common installation errors for management.
ESG &
Sustainability
Outsider MDT contributes to sustainability efforts by enabling smarter water management solutions that help property owners reduce waste and promote responsible resource usage.
-
Case Study | Guardian Water & PowerGuardian Water & Power encountered significant challenges in outdoor submetering due to harsh weather conditions. Frequent disruptions led to costly repairs and inconsistent data collection, adversely affecting service delivery and customer trust. Recognizing the urgent need for a reliable solution, they sought innovative technology to enhance their operations.
Challenge
- System downtime due to harsh weather
- Repairs were difficult and costly
- Cellular technology meant inconsistent data collection
-
Case Study | Kimco RealtyKimco Realty Corporation faced considerable challenges in billing their 7,000 tenants accurately for water usage across a diverse portfolio of retail properties. A lack of standardized methods for dividing costs led to disputes and frustration, resulting in millions in uncollected revenue. Recognizing this issue, Kimco sought innovative submetering technology to streamline billing processes and enhance tenant satisfaction.
Challenge
- Inconsistent tenant water billing methods
- Tenant disputes over water costs
- Millions lost in uncollected revenue
-
Case Study | Fair Energy SubmeteringFair Energy Submetering faced challenges tracking utility usage and identifying issues such as leaks across various properties. In search of more detailed data for effective management, they turned to Tehama Wireless’ advanced submetering sensors. This innovative technology enabled swift identification of problems, allowing them to avert potential disasters.
Challenge
- Inaccurate tracking of utility usage
- Difficulty identifying leaks in properties
- Limited data hindered effective management
Documentation & Resources
| Input Type | A pulse meter that reads data from utility meters generating pulse outputs, ensuring accurate readings. |
| Communication Range | Up to 3500 ft (Standard), nearly 10 miles (MAX/LoRaWAN). |
| Battery Life | Operates on two field-replaceable AA lithium batteries with a typical life of 5-8 years. |
| Operating Temperature | Ranges from -20°F to 145°F. |
| Auto-Detection | Automatically detects data formats for various brands of meters, including Sensus and Neptune. |
| Water-Resistant | Designed to withstand exposure to the elements, such as rain, humidity, and temperature variations. |
| Waterproof Options | Available in the Submersible model, a pulse unit designed for use in environments where complete water exposure is expected. |
| Input Options | Provides configurations for both single and dual pulse inputs for flexible installations. |
Integrates directly with NMT water meters for quick, error-free installations.
Instructions for configuring and sending custom daily reports from MDTs using email or FTP delivery.
Wiring instructions for connecting the MDT to compatible meters.
Comprehensive steps for configuring and integrating MDTs with the DCAP system
Template for importing site configuration data to Tehama Wireless.
Frequently asked questions explaining the benefits and functionalities of the MAX Range Series.
Instructions for replacing batteries in field-deployed MDT units.
Tehama Wireless provides a five-year warranty for its products.
This diagram illustrates how the MDT interacts with the Tehama Wireless system.
