Overview

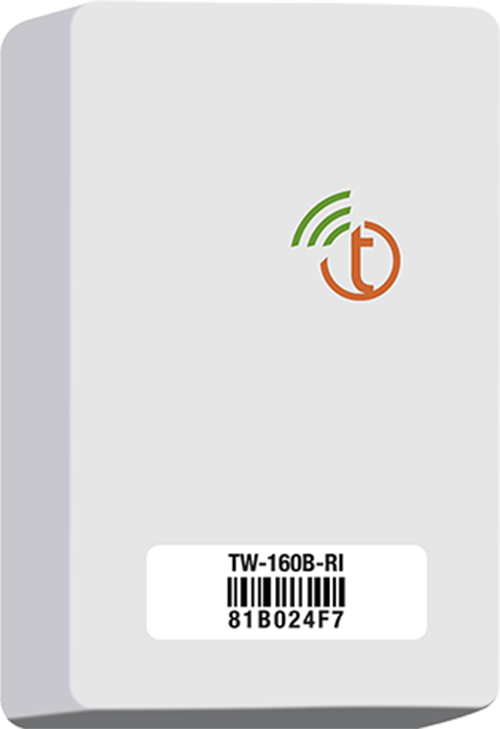

The Tehama Wireless Display MDT combines our proven MDT transceiver with an LCD display to provide the easiest and most accurate way to comply with tenant meter reading access requirements in California and elsewhere. Available for both Pulse and Encoder meters, with dual input hot/cold models available, the Display MDT is designed to be placed inside tenant space and wired to the meter(s). The LCD screen displays the consumption for 60 seconds when the button is pushed, toggling between hot/cold for dual input models.

Tehama Remote

Display is a display-only model without the AMR radio. It can be used if an existing AMR system is already installed or is not required. It comes with all the other benefits of our Display MDT including a very easy to use programming method.

Features

• Available in Standard Range and new MAX Range models
• Display shows units (Gallons or Cubic Feet) and Hot/Cold for dual units
• Mounts on standard single-gang electrical box for a professional looking installation
• NTEP certified. Approved for use in California
• Simple configuration via our CIT software using a communication cable
• Up to 3500 foot open field range
• LED indication for RF network status
• FCC certified for US and Canada
•
